Product Details:
Payment & Shipping Terms:
|
| Product Name: | DC24V DMX512 RGBW LED Pixel Module | Voltage: | DC24V |
|---|---|---|---|
| IP Rating: | IP67 | Warranty: | 2 Years |
| Power Consumption: | 12.96W | Application: | Amusement Rides |
| IC Type: | DMX512 RGBW | Connectors: | 2pin For Power/ 5pin For DMX |
| Highlight: | 24V Led Pixel Module Lights,RGBW Led Pixel Module Lights,IP67 Led Pixel Module Lights |
||

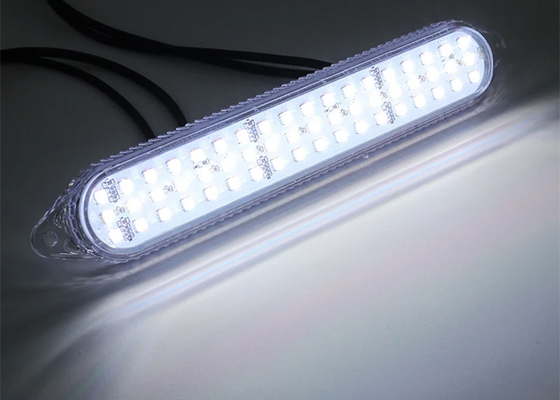

24V DMX512 RGBW Led Pixel Module Lights For Amusement Rides Waterproof IP67
Specifications,
| Model NO. | PS-28045-DMX-RGBW-24V |
| Input voltage | DC24V |
| Power consumption | 12.96W |
| LED QTY | 36pcs RGB LEDs, 18pcs W LEDs |
| installation | Screw 18mm hole clips on it |
| iC type | DMX512 RGBW |
| Connectors | 2pin for power/ 5pin for DMX |
| Warranty | 2 years |
| Certificate | CE,RoHS |
Features ,

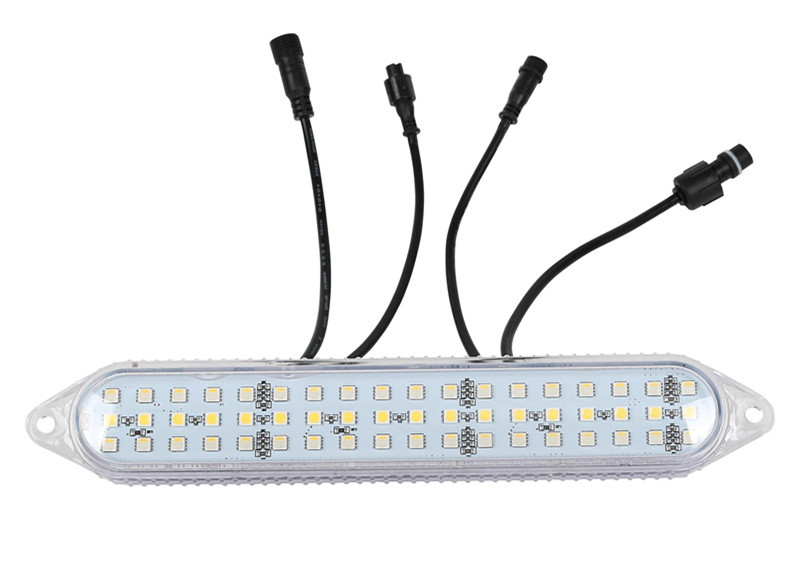

280mm*45mm Diameter LED pixel module
- 36 pcs SMD5050 RGBW (CCT 5000-5500k)&
18 white LEDs (CCT 5000-5500k)
- 12.96W, 3pcs DMX512IC
- 1pcs/Chain

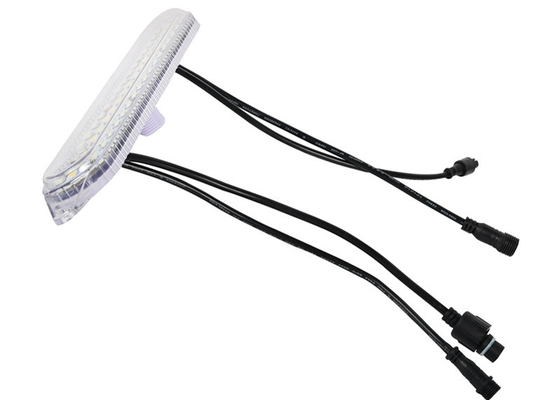

- 1pcs seperated with 2pin & 5pin male & female black waterproof connector
Male&Female connector
- 5pin connector for DMX signal, 2pin connector for power (input & output)
- one pair 2pin male&female & one 5pin pair male&female

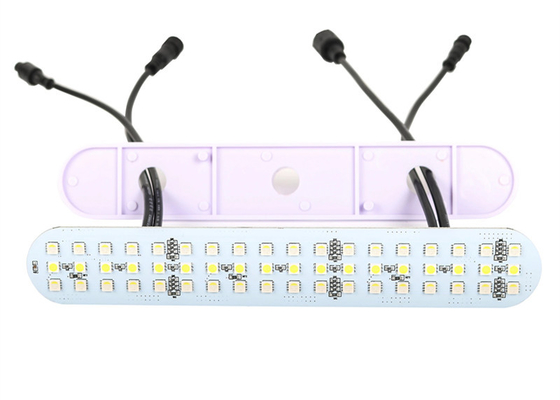

Special PCB Design
- 3 DMX ICs, each IC controlling a line/group of LED, 3lines/ groups in total
- Extra 6pcs white LED to each line, which are not controlled by IC, and 2pin black waterproof male&female connector cables are provided separately
Dimension&drawing,
Application,
Amusement Rides
