| Input Voltage: | 48V | LEDs: | 5050 LED |
|---|---|---|---|
| CRI: | ＞70(>80,>90 Optional) | CCT: | 3000K/4000K/5000K/6000K |
| LED Qty: | 12pcs | IP Rate: | IP66 |
| Highlight: | 160lm / W LED Illumination Light,40W LED Heat Sink Module,Street Tunnel LED Heat Sink Module |
||

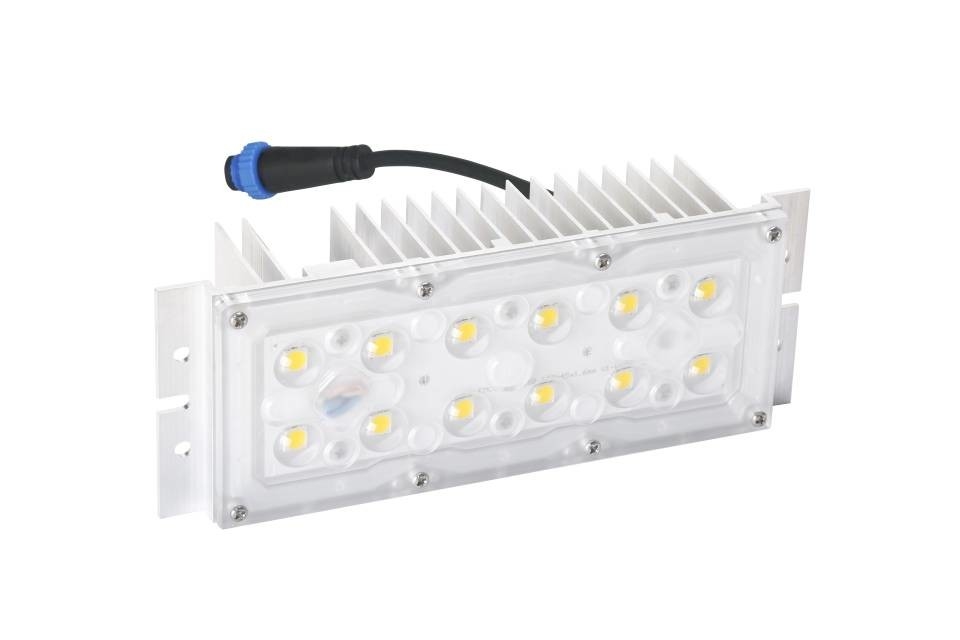

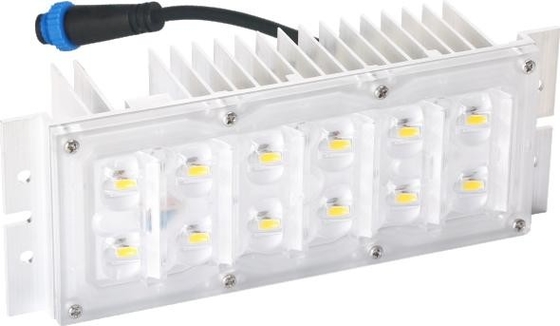

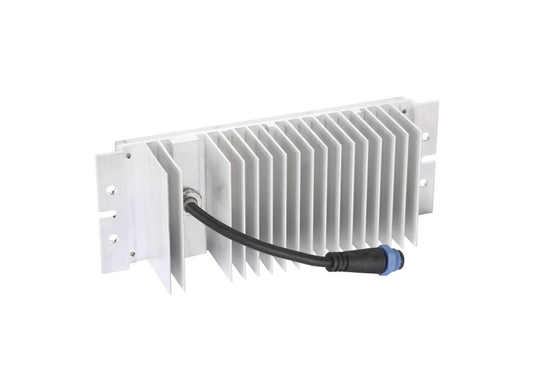

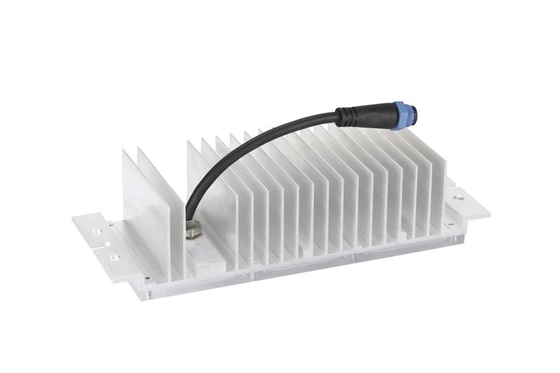

Street Tunnel 12W - 40W LED Heat Sink Module 200lm / W LED Illumination Lights
Parameter :
| Model | PS-M175012 | |||
| Power | 12W | 20W | 30W | 40W |
| Input Voltage | 48V | |||
| Output Current | 0.25A | 0.42A | 0.63A | 0.83A |
| LEDs | 5050 LED | |||
| CRI | ＞70(>80,>90 optional) | |||
| Luminous Efficiency | 190lm/w | 180lm/w | 170lm/w | 160lm/w |
| Luminous Flux(±5%) | 2280lm | 3600lm | 5100lm | 6400lm |
| CCT | 3000K/4000K/5000K/6000K | |||
| Beam Angle | 140x30°/148x50°/150x60°/140°/30°/60°/90°/80x40° | |||
| LED Qty | 12pcs | |||
| P Rate | IP66 | |||
| Working Environment | -40℃~50℃,20%~90% RH | |||
| Storage Temperature | -45℃~55℃,10%~90% RH | |||
| -45℃~55℃,10%~90% RH | Aluminum AL6063-T5 | |||
| Lens Material | PC | |||
| Connector Size | M15 | |||
| Wire Length | 200mm/300mm optional | |||
| Module Size(mm) | 200x72x55 | |||
| Lifespan | >50,000 Hours | |||
| 40PCS/CTN | 430x410x190mm | |||
| N.W.(KG) | 0.43KG/pcs | |||
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union; 70% before delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Quality Control
1. Before the order to be confirmed, we will check the material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party to check the quality.
5. We will try our best to help clients when problem occurred.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, We will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, We will provide paid maintance within warranty period.
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have outdoor projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED light supplier, our design teams can provide you the best solution.
And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a street/high way ,what's your suggestion?
Please give me the below information:
A:the wide of the street.
B:the arrangement and the height of the light poles
C:the requirement of the illumination.
