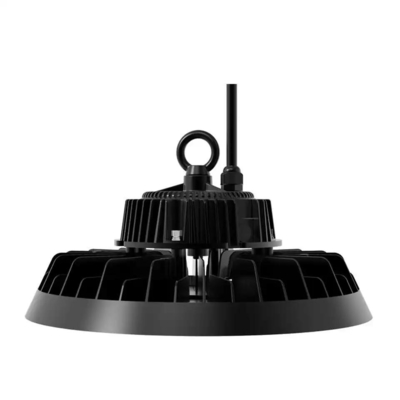

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy

Large Image : Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy

Product Details:

Place of Origin:	China
Brand Name:	phenson
Certification:	CE ROHS
Model Number:	PS-S3-240W

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Packaging Details:	1pcs/carton
Payment Terms:	T/T
Supply Ability:	100000PCS/month

Contact Now

Detailed Product Description

Color Temperature(CCT):	5000K	Color Rendering Index(Ra):	70
Lamp Luminous Flux(lm):	39600	IP Rating:	IP65
Lamp Luminous Efficiency(lm/w):	165	Model Number:	PS-S3-240W
Certification:	CE,EMC,LVD,ROHS	CCT Tunable:	3 CCT In One
Support Dimmer:	Yes
Highlight:	Smart Sensor UFO High Bay Led , 150W UFO High Bay Led , UFO High Bay Led 200W

Packaging & delivery

Port: Shenzhen

Lead time:

Quantity(pieces)	1 - 200	>200
Lead time (days)	15	To be negotiated

IP65 UFO LED High Bay Light 100W 120W 150W 200W 240W 160-180lm/w Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 0

Main Features

• Power Range: 100W 120W 150W 200W 240W LED high bay light.
• High Lamp Efficacy: 160-180 lm/w.
• Lens Angle: 60° , 90°, 120°
• Lifespan: >50,000 hours, 5 years warranty.
• CCT: 3000K 4000K 5000K 6000K are all available.
• Sensor Type: Pluggable motion sensor / WIFI control / 0-10V dimming control optional.

• Control Way: Mobile App/Remote/Auto

Parameters

Parameters of UFO LED high bay light

Model	S3-100	S3-120	S3-150	S3-200	S3-240
Power	100W	120W	150W	200W	240W
Power Efficiency	0.91
Input Voltage	AC 100-277V 50/60Hz
Standard Efficiency	165lm/w
Luminous Flux(±5%)	16500lm	19800lm	24750lm	33000lm	39600lm
High Lumen efficiency	180lm/w
Luminous Flux(±5%)	18000lm	21600lm	27000lm	36000lm	/
CCT	3000K/4000K/5000K/6000K
CRI	>70(>80,>90 optional)
Beam Angle	60°/90°/120°
Dimmable	0-10V/PWM/Microwave Motion Sensor/PIR Sensor
N.W.(KG)	2.8	2.8	2.9	3.4	3.5
G.W.(KG)	3.6	3.6	3.7	4.2	4.3
IP Rate	IP65
Body Material	Aluminum Alloy
Lens Material	PC
Lamp Size(mm)	Ø270xH163			Ø320xH173
Packing Information(mm)	360x360x190mm
Lifespan	>50,000 Hours

Product Details

Product details of UFO LED high bay light

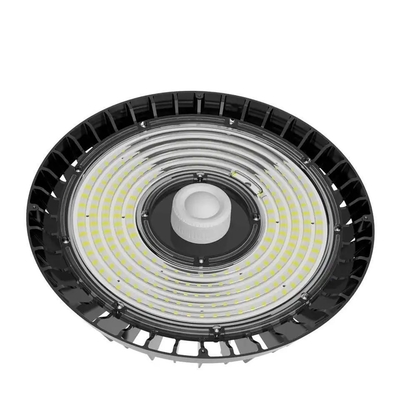

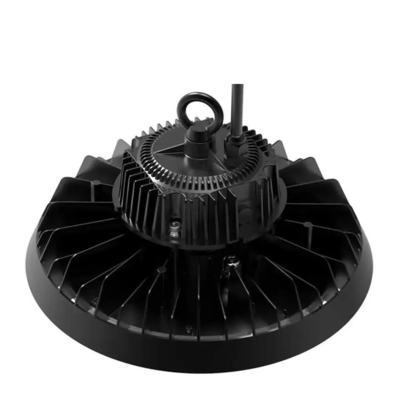

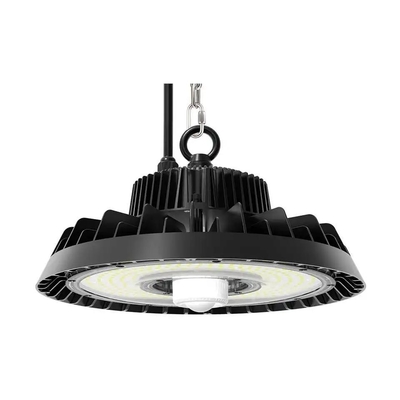

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 2

Dimension

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 10

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 11

Product Accessories

100W-240W UFO LED high bay light series

Contact for further details.

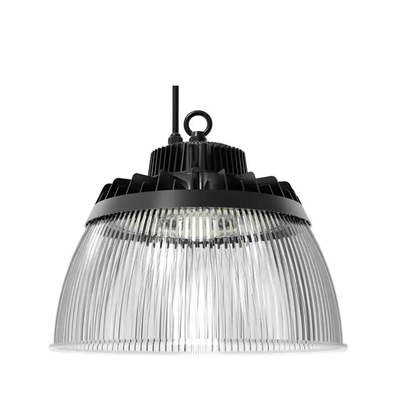

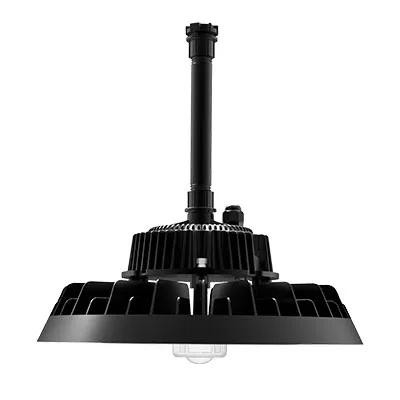

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 12

Applicati

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 14

Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy 15

Our services contain the all LED lighting industry chain: LED package to LED lighting, optical lens design to LED lighting solution provide. Depending on the parent company’s R& D advantage,we have perfected intellectual property control system, R&D control mechanism in the initial period. We keep the idea of high quality first all the time,offering LED outdoor lighting products,module products,sport lighting,industrial lighting,smart lighting controlling system to customers. Products have been approved ENEC,CB,ETL,DLC,CE,Rohs,LM79,LM80 etc authorized certificates & reports, We have been listed in Guangdong province LED Benchmarking system, Government Energy-Saving product purchased company.

Tochlighting pursue the product innovation and customer needs always,offer the best product and services to clients,make contribution to the LED industry development and the earth’s sustainable development.
