| Color: | 3000-6000K | LED Chip Quantity: | 400 Chips/ Meter |
|---|---|---|---|
| PCB Width: | 8/10 Mm | Wattage: | 10-14W W/m |
| Warranty: | 3 Years | Working Voltage: | 12V DC |
| Highlight: | DC12V LED Tape Ribbon Light,LED Tape Ribbon Light IP20,Dotless Flexible COB LED Strip |
||

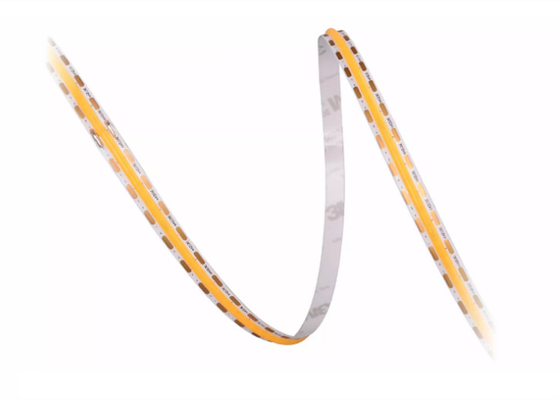

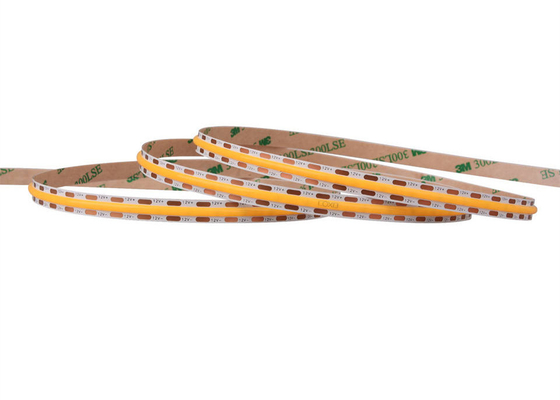

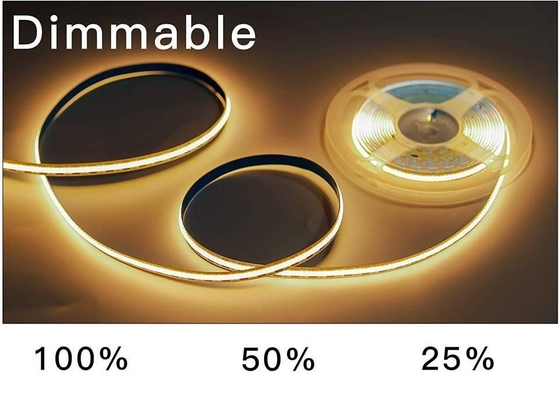

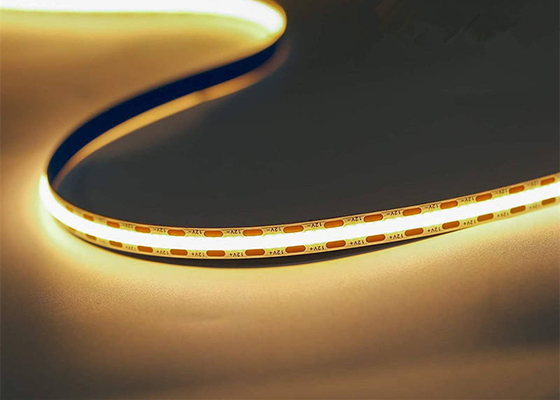

LED Tape Ribbon Light DC12V 400leds 8mm 10mm Cut IP20 White Warm White Dotless Flexible COB LED Strip
Product features,
Short-cut COB LED Strip:
1.Short-cut COB LED Strip is designed to provide us short cutting unit dot-free effect lighting, minimum 10mm cuttable.
2.Invisible resistors, making a clear appearance.
3.Better bending performance with flip chips.
4.180°view angle, high color efficiency.
5.3mm, 4.5mm, 5mm wide ultra narrow PCB available.
Product parameters,
| Basic Parameters | |
| Size | 5000*8mm 2oz(25/25) |
| LED Type | COB |
| LED Qty/M | 400 |
| Input Voltage | 12V/24V DC |
| Cutting Unit | 10mm(12V) 20mm(24V) |
| Input Current | 0.75A/M / 0.375A/M |
| Max Power/M | 9W/M |
| Bend Diameter | >60MM |
| IP Grade | IP20/IP67/IP67S |
| Photo-electric Parameters | |
| CRI | >90 |
| CCT | 2700K/3000K/4000K/6500K/Red/Green/Blue/Yellow |
| LM/M | 820-900LM/M |
| LM/W | 95-100LM/W |
| Energy Efficiency Class | F |
Led connectors for cob strip
Waterproof IP Grade
Application
