Product Details:
Payment & Shipping Terms:
|
| Application: | Advertising Light Box | Part No: | PS-C405 |
|---|---|---|---|
| LED Source: | SMD 3030 | Power /piece: | 13.5W |
| Lm/Heart: | 135lm | Length: | 495mm/990mm |
| LED Qty: | 9pcs/18pcs | IP Grade: | IP33 |
| Certification: | CE,ROHS FCC | Produce Name: | LED Edge Light Bar |
| Working Voltage: | DC24V | ||
| Highlight: | SMD3030 Edge Light Strip,28.08W Edge Light Strip,1M18led Lamp Box Led Strip |
||

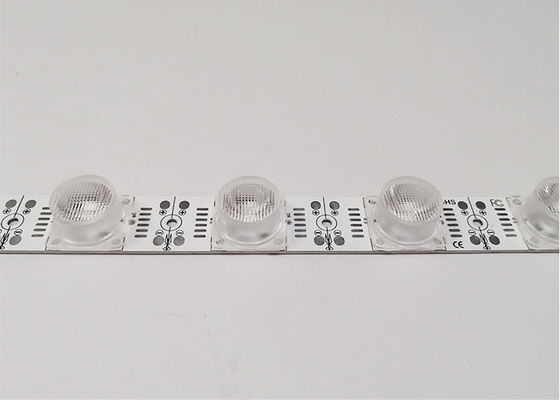

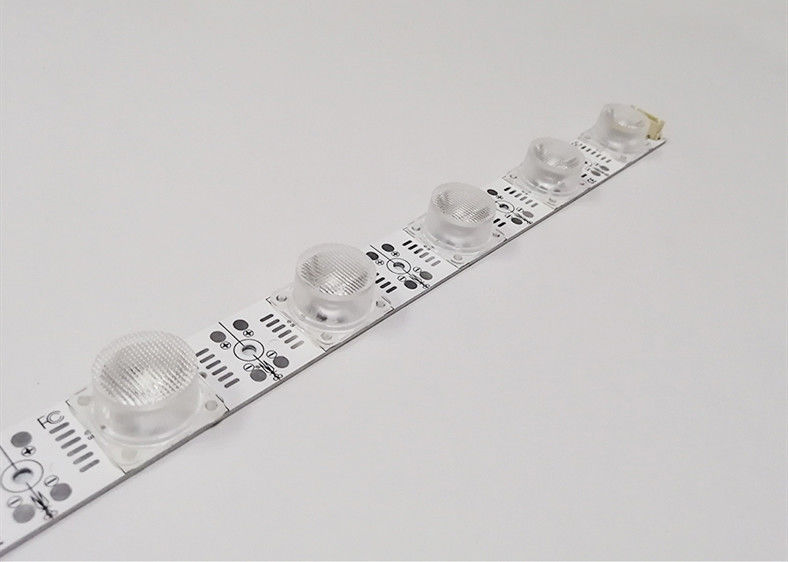

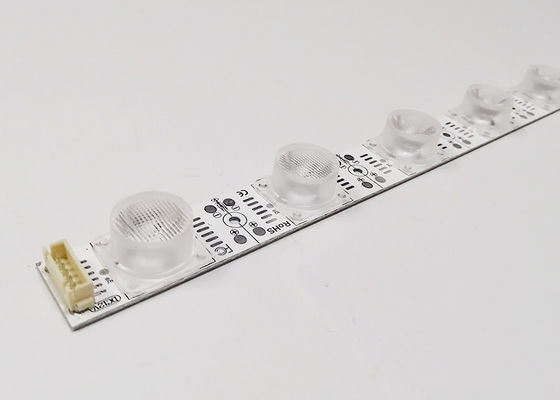

Edge Light Strip 1M18led 28.08W DC12V SMD3030 Lamp Box 9000-12000K
Product description ,
1.DC12V voltage input, safe and reliable, wide range of application.
2. Constant current drive to ensure LED brightness consistency and
lamp box uniformity.
3. The light source adopts SMD3030, packaging wafer 14*28
luminescent chip three, high brightness, low light decay, good color,
long life, good stability.
4. Adopt 1.6mm thick and high thermal conductivity aluminum
substrate to dissipate heat and improve the service life of products.
5. An optical lens of 10X60° is adopted to scatter light from two
directions, ensuring the uniformity of the light source, no macula, and
the irradiation distance up to 1.5m.
| Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
| PS-C405-9D-W | 7000-8000K | DC12V | SMD3030 | 13.5 | 135 | 495 | 6pcs |
| PS-C405-18D-W | 7000-8000K | DC12V | SMD3030 | 27 | 135 | 990 | 18pcs |
| PS-C405-9D-C | 9000-12000K | DC12V | SMD3030 | 13.5 | 135 | 495 | 9pcs |
| PS-C405-18D-C | 9000-12000K | DC12V | SMD3030 | 27 | 135 | 990 | 18pcs |
