Product Details:
Payment & Shipping Terms:
|
Produce Name: | LED Edge Light Series | Part No: | PS-C404 |
---|---|---|---|
Working Voltage: | DC24V | LED Source: | CSP1818 |
Power /piece: | 15W/20W/25W | Lm/Heart: | 450lm |
Length: | 300/400/500mm | LED Qty: | 6pcs/58pcs/10pcs |
IP Grade: | IP65 | Certification: | CE,ROHS FCC |
Beam Angle: | 15x45° | PCB Material: | Aluminium |
Highlight: | CSP1818 Edge LED Light Bar,450lm Edge LED Light Bar,DC24V Screw Fixing LED Bar |

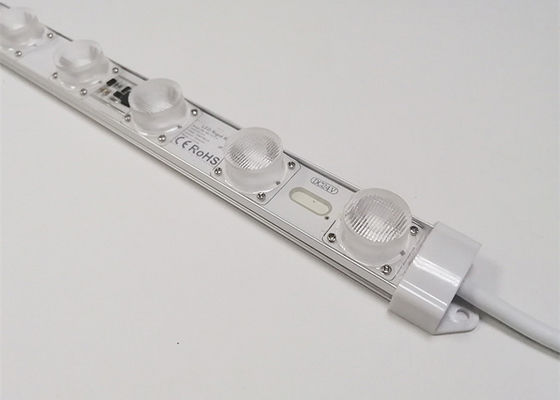

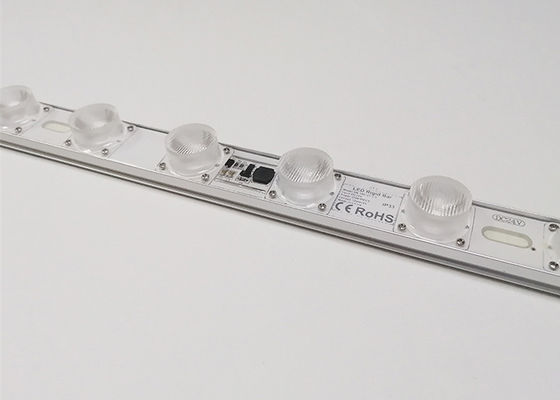

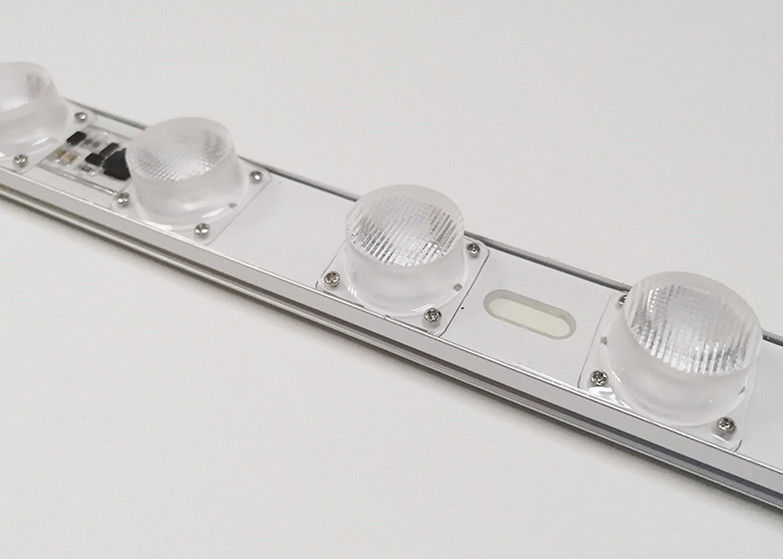

CSP 1818 Waterproof Edge Light Bar Screw Fixing Series DC24V IP65
Product Features,
1. DC24V low voltage input, safe and reliable, wide range of
application.
2. Constant current drive ensures LED brightness consistency and light
box uniformity.
3. Using Taiwan new century CSP1818 high power LED, good heat
dissipation, large current, high reliability.
4. Adopt 2.0mm thick and high thermal conductivity aluminum
substrate to dissipate heat and improve the service life of the product.
5. With an optical lens of 15X45°, the light scatters from both
directions, ensuring the uniformity of the light source, no macula, and
the irradiation distance up to 3m.
6.Fixed with hard anti-rust screw, never drop when using,
environmental protection and maintenance-free.
7. 6063 aviation aluminum profile heat dissipation, silicone waterproof,
effectively solve the problem of waterproof heat dissipation.
Part No. | CCT | Working voltage | LED source | W/pcs | Lm/Heart | Length(mm) | LED Qty |
PS-C404-6D | 6500K | DC24V | CSP1818 | 15 | 300 | 300 | 6pcs |
PS-C404-8D | 6500K | DC24V | CSP1818 | 20 | 300 | 400 | 8pcs |
PS-C404-10D | 6500K | DC24V | CSP1818 | 25 | 300 | 500 | 10pcs |
