| Max Power: | 100W | Material: | Metal |
|---|---|---|---|
| Waterproof Grade: | IP67 | Voltage Range: | 25-36V |
| Current: | 2.68A | Effiency: | 90% |
| PF (Typ.): | 0.97 | O/P Current Tolerance: | 5% |
| Highlight: | 4kV Led Driver Power Supply,meanwell switching power supply,4kV constant current power supply |
||

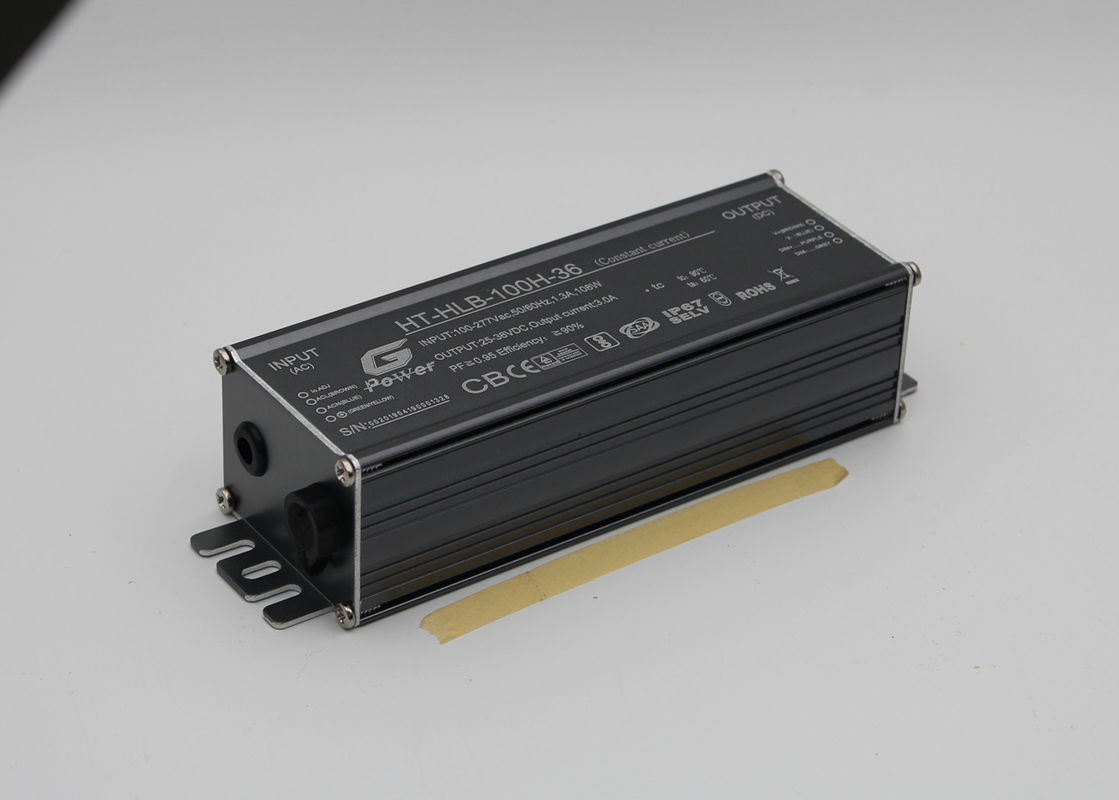

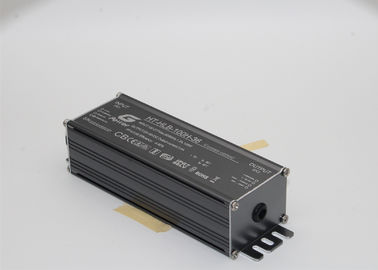

Constant Current HLB Series 100W Outdoor Led Driver Power Supply IP6
Features:
Model list:
| Model | O/P | O/P | Rated Power | O/P | THD | PF | Efficiency |
| Voltage | Current | Current | (Typ.) | (Typ.) | (Typ.) | ||
| Tolerance | |||||||
| HT-HLB-100H-36A | 25-36V | 2.68A | 100W | ±5% | 15% | 0.97 | 90% |
| HT-HLB-100H-48A | 36-48V | 2A | 100W | ±5% | 15% | 0.97 | 90% |
| Custom-Tailor | / | / | / | / | / | / | / |
Input Characteristics:
| Parameter | Min | Typ. | Max | Remarks |
| Rated AC input range | 100Vac | 277Vac | ||
| AC input range | 90Vac | 305Vac | ||
| Input frequency range | 47Hz | 63Hz | ||
| Max input current | 1.25A | 90Vac, full load | ||
| Inrush current | 60A | 230Vac/50Hz, cold start | ||
| No load power | 1.0W | 1.5W | 230Vac/50Hz, no load | |
| Power factor | 0.95 | 0.97 | 230Vac/50Hz, full load | |
| 0.9 | 100-277Vac/50Hz, 70-100% Load | |||
| THD | 10% |
100-277Vac/50Hz, 70-100% Load |
Output Characteristics,
| Parameter | Min | Typ. | Max | Remarks | |
| Output voltage range | HLB-100H-36 | 25V | 33V | 36V | |
| HLB-100H-48 | 36V | 45V | 48V | ||
| Custom-Tailor | / | / | / | ||
| Rated output current | HLB-100H-36 | 3A | |||
| HLB-100H-48 | 2.1A | ||||
| Custom-Tailor | / | / | / | ||
| Current adjustable | HLB-100H-36 | 2.26A | 3A | 3.7A | |
| range | |||||
| HLB-100H-48 | 1.8A | 2.1A | 3A | ||
| Custom-Tailor | / | / | / | ||
| No load voltage | HLB-100H-36 | 38V | 44V | 48V | |
| HLB-100H-48 | 50V | 54V | 58V | ||
| Custom-Tailor | / | / | / | ||
| Efficiency @230Vac | HLB-100H-36 | 88% | 90% | / | |
| HLB-100H-48 | 88% | 90% | / | ||
| Custom-Tailor | / | / | / | ||
| Output current tolerance | -5% | 5% | |||
| Output current ripple(PK-PK) | 3600mV | 5000mV | Full load | ||
| Start-up current overshoot | 10% | ||||
| Start-up time | 1S | 2S | 230Vac | ||
| Line Regulation | -3% | 3% | Full load | ||
| Load Regulation | -3% | 3% | |||
Other Characteristics,
| Parameter | Min | Typ. | Max | Remarks | |
| 0-10V Dimming | Dim Vmax | -20V | 14V | ||
| (Optional) | Dim Range | 10%Iomax | 100%Ioset | ||
| Voltage | 1V | 10V | |||
| OFF | / | / | / | Dim-off value | |
| ON | / | / | / | ||
| PWM Dimming | High | 5V | 10V | ||
| (Optional) | Low | -0.3V | -0.6V | ||
| Frequency | 200Hz | 2KHz | |||
| PWM Duty | 1% | 99% | |||
| Timing Curve | IC Control | By programming | Typically 2-5 sections | ||
| (Optional) | |||||
| Protection | OTP | 90℃ | 100℃ | 110℃ | Tc, Self-recovery |
| Short Circuit | Driver will not damaged with | Hiccup mode | |||
| Protection | short-circuit power <10W | ||||
| Life time | 50000 hrs | 230Vac, full load, Tc 75℃, | |||
| Tc | 90℃ | ||||
| Warranty | 5 years | Tc: 75℃ | |||
| Net Weight | 580g | ||||
| Dimension | 170*53*39.5 | L x W x H(mm) | |||
Mechanical Characteristics (Unit: mm)
| NOTE: | |
| Input Wire | UL model: UL #18AWG 3*0.824mm²,GREEN: PE,BLACK: L,WHITE: N |
| Euro model: VDE 3*0.75mm²,YELLOW/GREEN: PE,BROWN: L,BLUE: N | |
| Output Wire | UL model: UL #18AWG 2*0.824mm²,RED: V+,BLACK: V- |
| Euro model: VDE 2*0.75mm²,BROWN: V+,BLUE: V- | |
| DIM Wire | #22AWG, PURPLE: DIM+,GRAY: DIM- |
