Product Details:
Payment & Shipping Terms:
|
| Voltage: | DC 5V | Color: | Full Color |
|---|---|---|---|
| IP Grade: | IP68 | Power: | 0.24W |
| Diameter: | 16mm | Certificate: | CE Rohs |
| Warranty: | 2 Years | IC Type: | WS2811 |
| Working Voltage: | DC5V | ||
| Highlight: | led point light,pixel led light |
||
Waterproof 16mm Diameter DC5V WS2811 Addressable RGB Full Color LED Pixel Light Module
Quick Detail :
Type: 16mm WS2811 LED Pixle Modules
Model Number: PS-16mm-WS2811-5V
Chip Material: AlGaInP
Emitting Color: RGB
Luminous Intensity: 80
Luminous Flux(lm): 8
Optical Attenuation(%): 5
Power: 0.24W
Power Dissipation: 0.24W
Viewing Angle(°): 160
Color Rendering Index(Ra): 80
Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -20 - 60
Place of Origin: Guangdong, China (Mainland)
Certification: CE, RoHS
1. Adopts high quality SMD5050 LED as lighting source.
2. With good protection level. can achieve IP68.
3. each module as one pixel, takes 3 dmx channels, RGB full color, can be controlled individually,
4. It is easy installation, screw fixed.
5; good looking, made with the injection machine
6; using the transparent cable, with good cold resistance ability
7: works with dmx matrix controller, or SPI pixel controller on-line controller. etc
Parameter :
| Part No | PS-16mm-WS2811-5V |
| Color | full color RGB(WS2811 IC inside)each module as one pixel; takes 3dmx channels |
| LED Qty | One piece of high bright 5050 SMD RGB led |
| Input Volt | DC5V |
| Max current | 48MA |
| Max Power | 0.24W |
| Driver method | Constant current circuit |
| Dimension | 16mm diameter |
| Viewing angle | 150-180degree |
| Protection Level | IP68 |
| Certification | CE and RoHS |
| Standard connection |
Input: female 3pin JST connector Output: male 3pin JST connector |
| Standard wire length | 100MM |
| Housing | transparent cover |
| Fixed way | screw |
| Lifespan | 35000 hours |
| Warranty | 2years |
| Operation temperature | -40-50 |
| Store temperature | -50-60 |
Applications :
Outdoor signboard
Casino Sign
Amusement park lighting
Playground fair lighting
Packing :
| Selling Units: | Multiple of 50 |
| Package size per batch: | 1X1X1 cm |
| Gross weight per batch: | 0.3 KG |
| Package Type: | by carton |

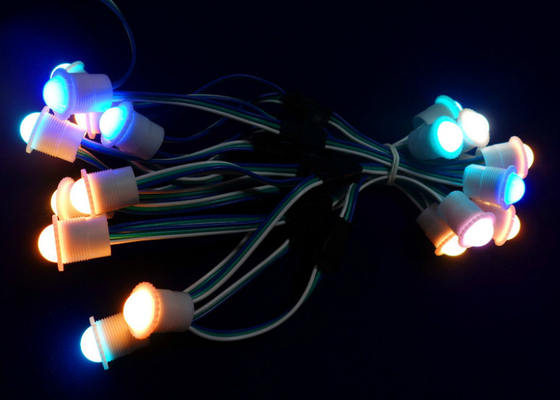

Picture :
