| Light Type: | RGB/RGBW | Item Name: | RGB/RGBW (2 In 1) DMX512 Master |
|---|---|---|---|
| Max. Load Power: | <1W | Working Voltage: | AC85-265V |
| Channel Number: | 512(DMX) | Output Signal: | DMX+RF(2.4G) |
| Model No: | T14 | Product Size: | L86*W86*H86mm |
| Application: | Hotel House Office KTVs | Dimming Range: | 0~100% |
| Highlight: | ROHS dmx led controller,30m Remote led light dimmer controller,30m Remote dmx led controller |
||

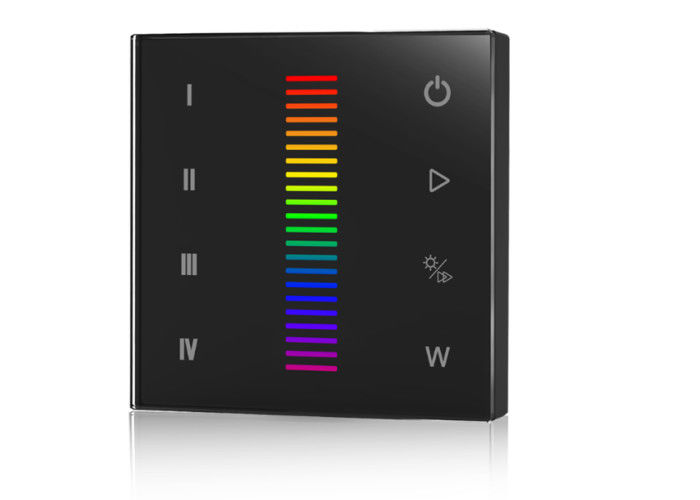

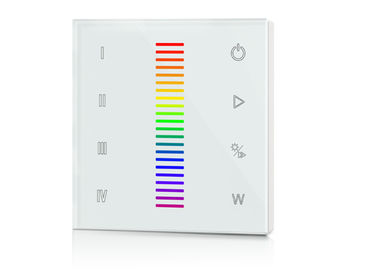

Wall Mounted Touch Panel RGB/RGBW (2 in 1) LED DMX512 Master & RF 2.4G Remote
Technical Parameters
● Input voltage: AC85~265V
● Output type: DMX+RF(2.4G)
● Grey levels: 256/CH
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size: L86×W86×H36.5mm
● Net weight: 169g
Summary
● Touch panel RGBW DMX master, can also used as RGBW remoter
● Select single zone or 4 zone, whether as a remoter through 2bit DIP switch.
● Output international standard DMX512/1990 signal,can connect more than one DMX decoder.
● Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.
● Smooth and accurate color adjustment by touching the color wheel.
● Independent brightness adjustment of each RGBW channel to achieve millions of colors.
● Built in 30 change mode optional, adjustable speed and brightness.
● Adopt 2.4GHz wireless technology, when used as controller,can accept up to 10 remoter control. when used as remoter,can remote control multiple RGBW controller.
● Support single zone independent adjustment,multiple zone synchronous adjustment
| No. | Name | No. | Name |
| 1 | RGB jump | 6 | RGB fade in and out |
| 2 | RGB smooth | 7 | Red fade in and out |
| 3 | 6 color jump | 8 | Green fade in and out |
| 4 | 6 color smooth | 9 | Blue fade in and out |
| 5 | Yellow cyan purple smooth | 10 | White fade in and out |
Packaging & Shipping
| Packaging Details | Packing for Wall Mounted Touch Panel RGB/RGBW (2 in 1) LED DMX512 Master & RF 2.4G Remote :1 plastic bag in white box+carton |
|---|---|
| Delivery Time | shipped in 1-3days |
Payment Terms:
1. Payment: T/T, Western Union, PayPal
2. MOQ: 50pcs
3. Warranty : 5 years
Shipping
1. By express, such as FedEx/DHL/UPS/TNT
2. By Air or by Sea for batch goods
3. Customers specifying freight forwarders or negotiable shipping methods!
